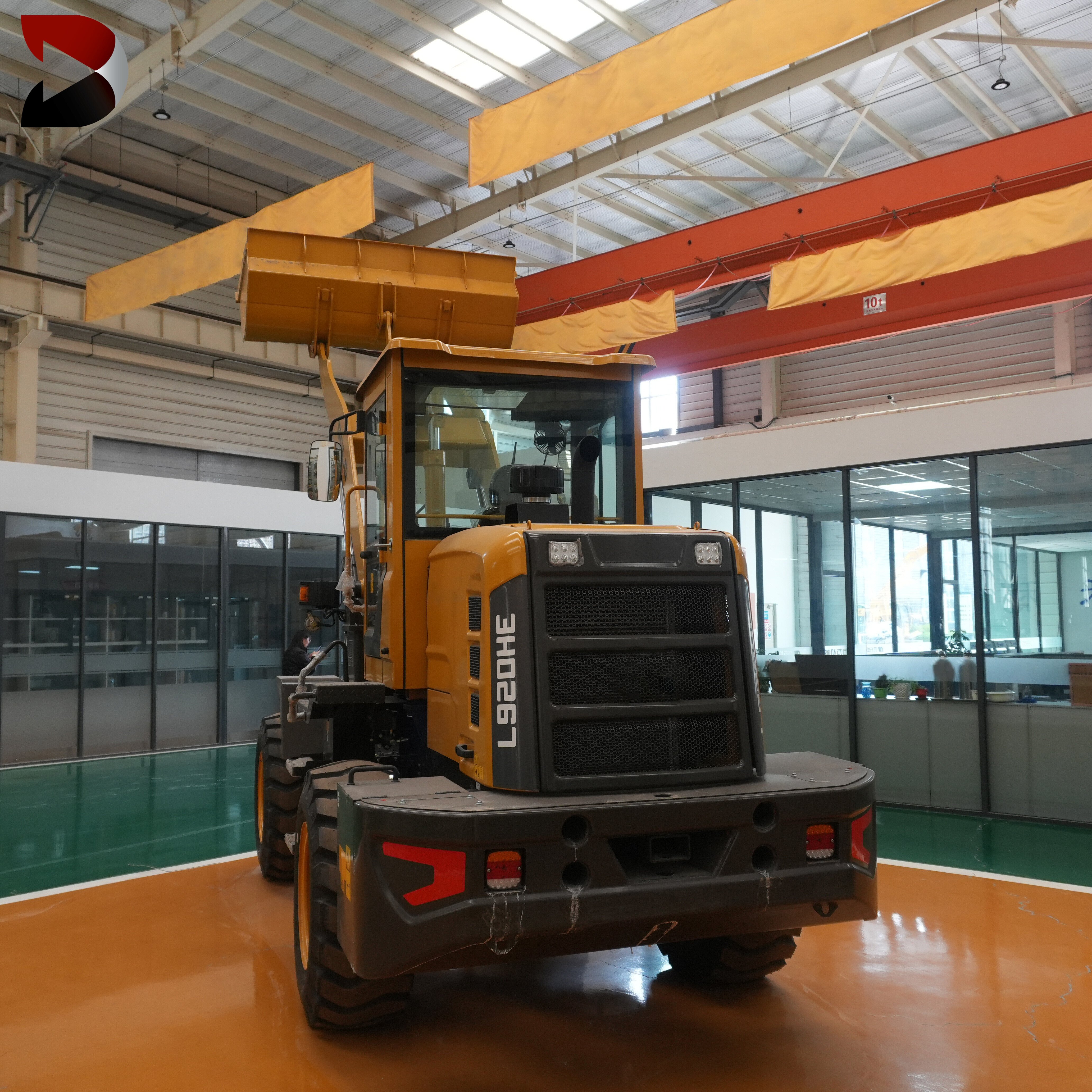

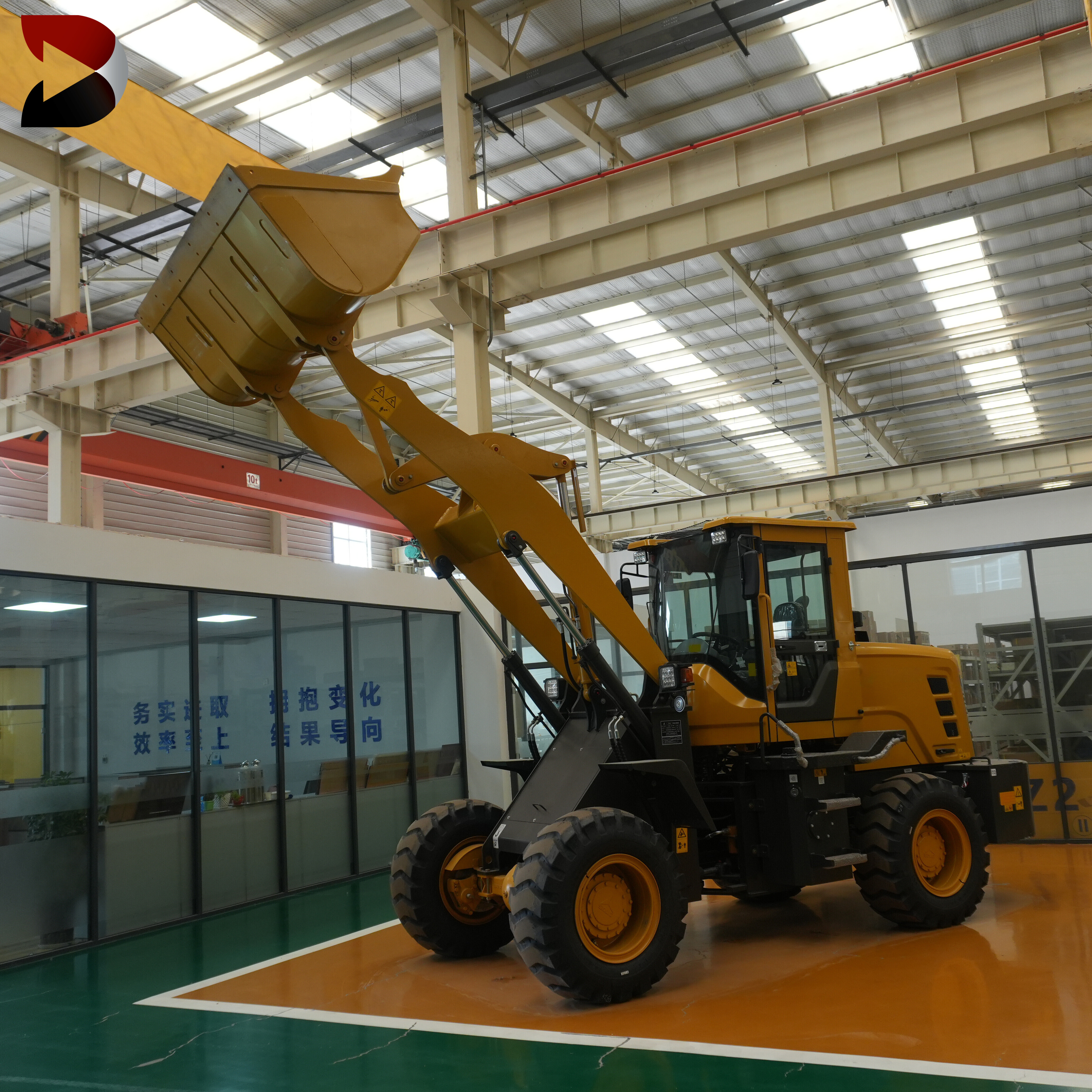

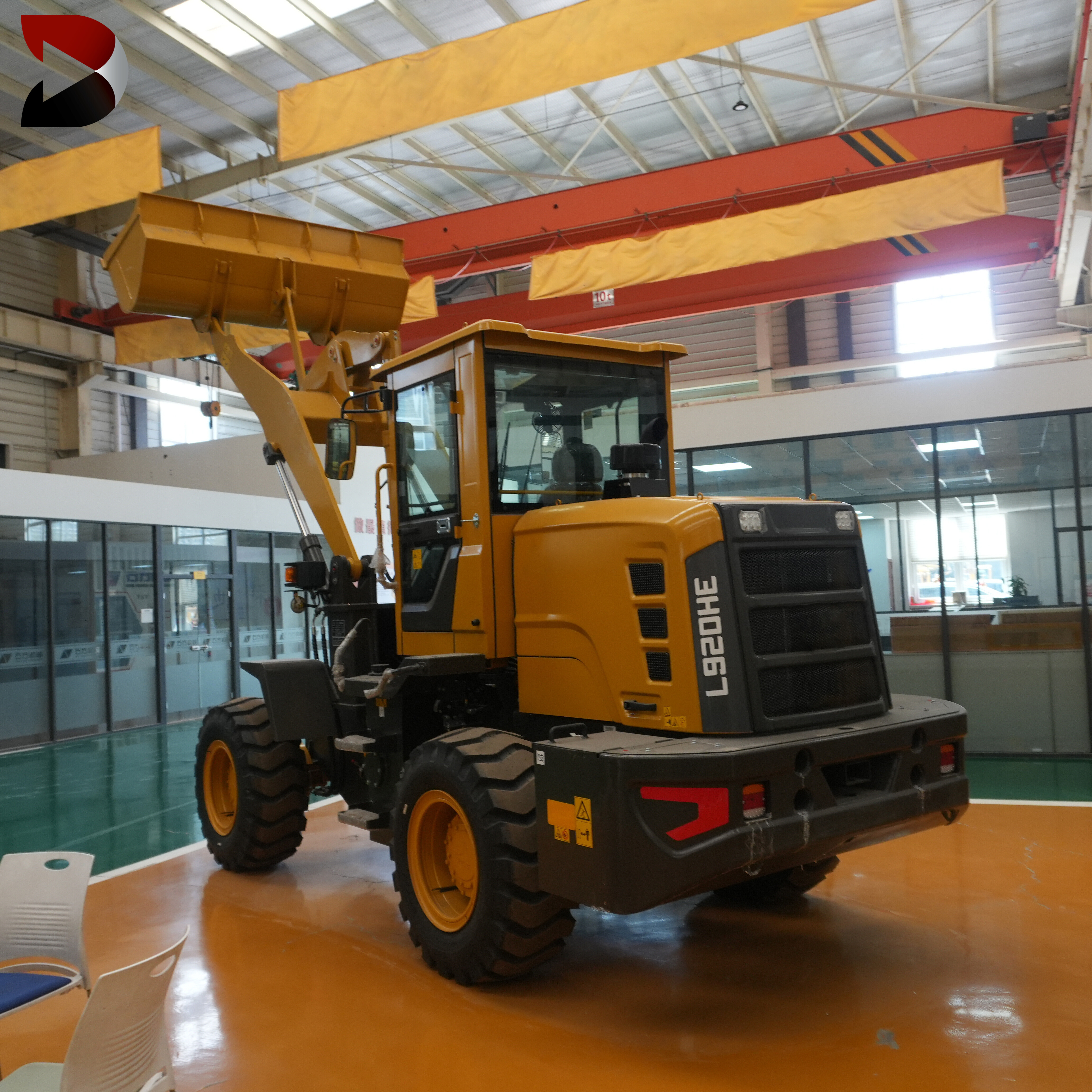

DW 920HE Wheel Loader
920 adopts four-stage engine, strong power, energy saving and environmental protection, no urea system, low cost, H type new appearance, beautiful and generous; Small and flexible, multi-purpose, quick return on investment, avoid idle equipment.
+86 19953113089
+86 19953113089
admin@dwtoptruck.com
Contact Us

◉ Product Parameters

920HE Loader performance characteristics:

1, four-stage engine, strong power, energy saving and environmental protection; No urea system, low cost of use.

2, H-type new appearance, beautiful and generous; Small and flexible, multi-purpose, quick return on investment, avoid idle equipment.

3, the use of three-component single turbine torque converter, fixed shaft power shift transmission, high reliability; Equipped with temporary reinforced drive axle, large bearing capacity, long service life.

4, articulated front and rear frame: key stress parts strengthen design, strong bearing capacity; Eliminate stress concentration, load distribution is reasonable, long service life.

5, horizontal radiator, medium flow resistance is small, good heat dissipation effect.

6, the hydraulic oil tank fuel port, torque oil filter, fuse box and other maintenance parts are external, easy to maintain; External lubrication point: pin, shaft sleeve parts of the butter lubricating oil pipe layout, easy maintenance.

7, both sides of the hood gas spring open, easy maintenance; Air filter, fuel filter centralized arrangement.

8. Comfortable driving space, new instrument panel, eye-catching color, strong recognition, easy to understand.

Gross mass

6170kg

Overall dimension

6625X2190X2880mm

Bucket capacity

1.2m³

Rated working load

1800kg

Maximum lifting force

≥50kN

Maximum unloading height

2454mm

Corresponding unloading distance

976mm

Maximum tractive effort

≥58kN

Ternary sum time

≤9.6s

Steering Angle

35°

Engine power

66kW



◉ Product Display

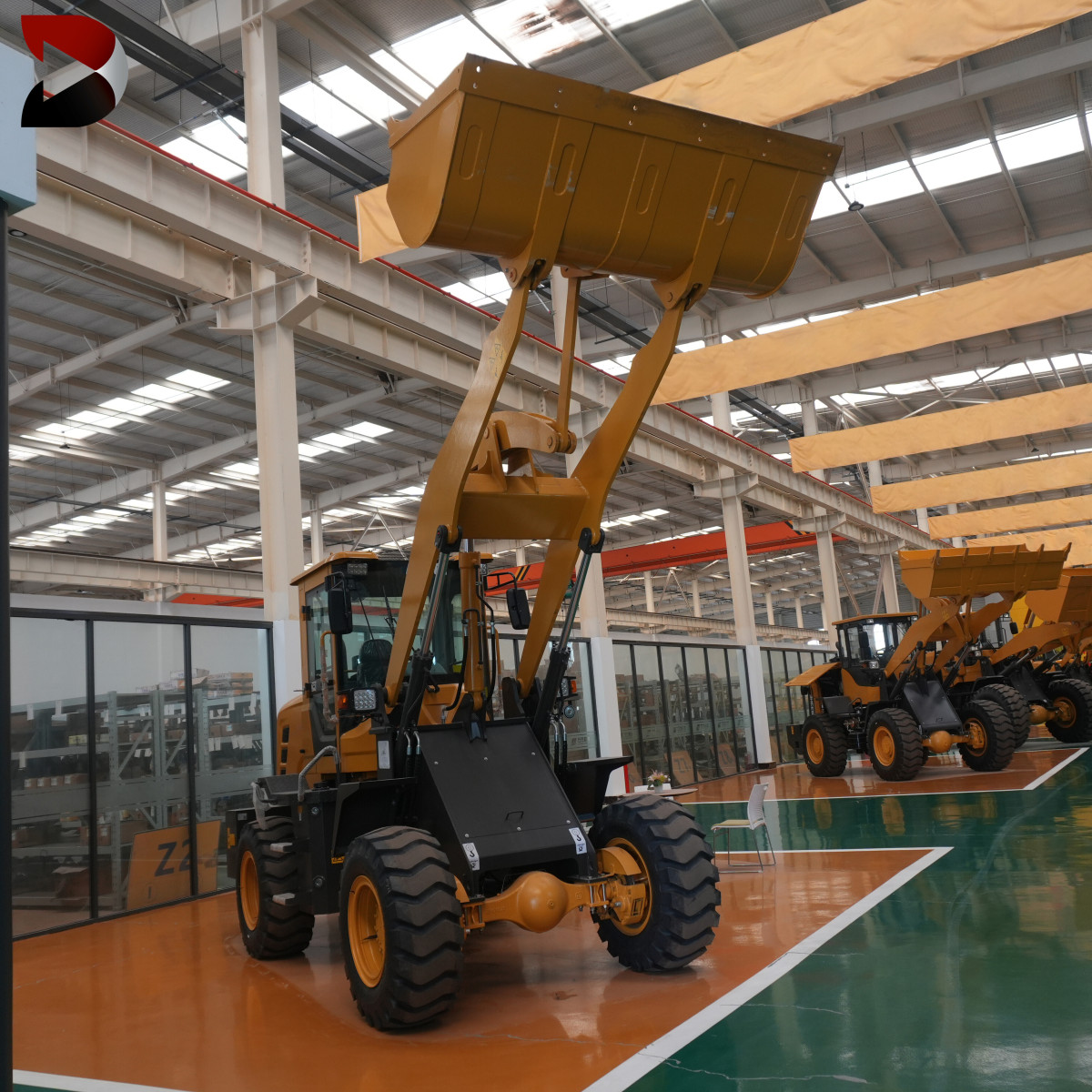

920装载机 (1).JPG

920装载机 (8).JPG

920装载机 (9).JPG
